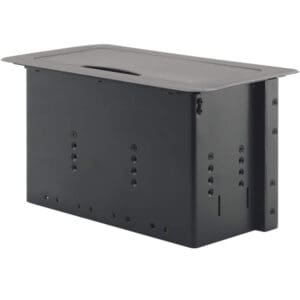

TBUS-4XL(BC)

Description

The TBUS-4xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

• Inner Frame – 2 different “T4F” inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
• Power Sockets – 8 different “TS” single socket options are available to accommodate the power requirements worldwide.
• Power Cord – 8 different “C-AC” single power cords (and 3 “Y” power cords) for each power socket.

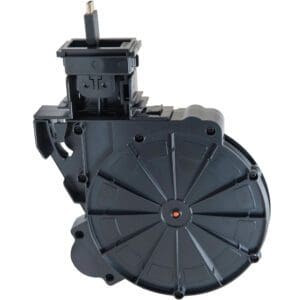

• Optional Accessories – TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.
• Cover – Manually opens & closes.
• Connector Depth – Adjustable.
• Installation Requirement – Table cutout of 225mm x 123mm (8.87″ x 4.85″).
• Dimensions – Top plate: 24.3cm x 14.0cm (9.6″ x 5.5″) W, D; Enclosure: 20.3cm x 10.2cm x 13.0cm (8.0″ x 4.0″ x 5.1″) W, D, H.
• Weight – TBUS-4xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs).
