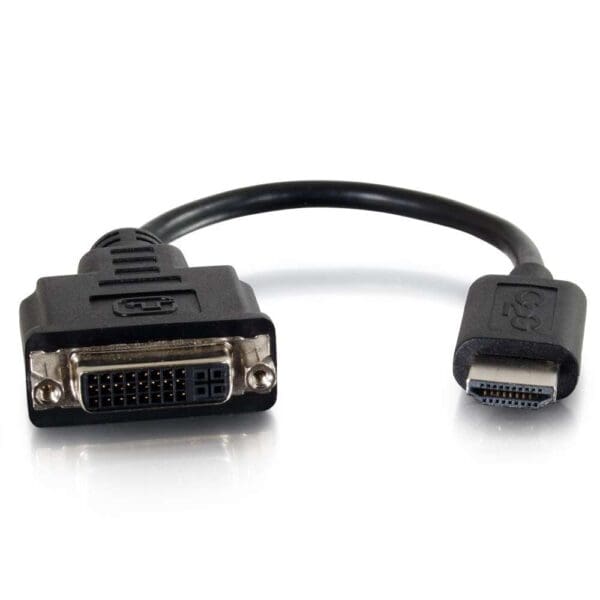

HDMI® Male to Single Link DVI-D™ Female Adapter Converter Dongle

Description

This adapter converter dongle is an ideal solution for connecting the video output of a HDMI-enabled Chromebook or laptop to a DVI-D display. The dongle design of this adapter converter does not cause the stress on the port of a small laptop that is common when using a box style adapter. Up to a 1920×1200 video resolution is supported, allowing this adapter converter to meet the needs of a high performance application. Connect this adapter directly to the output of a laptop and use a DVI-D cable to connect to a display. Note:  This adapter is not designed to support analog signals. This adapter should be used to connect an HDMI device to a display which accepts a DVI-D digital video input or to connect a DVI-D device to an HDMI display. This adapter is not capable of connecting a HDMI device to a VGA device. Additional Technical Specs Electrical Characteristics • Resolutions Supported: 480i/480p, 576i/576p, 800×600, 720i/720p, 1280×1024, 1600×1200, 1080i/1080p • Voltage: 5V, 500mA (VGA models) • Voltage Rating: 30V • Pixel clock rate: Up to 165MHz • Impedance : 100±5 • Intra-pair skew: 15ps/m max Physical Characteristics • Minimum Bend Radius: 12mm • Operating Temperature: 0°C to 70°C • Storage Temperature: -10° to 40° C • Adapter Length: 203mm • Approvals: CE Conductor (Qty. 3) • Conductor Type: 32AWG 7/0.08TCS x15 Tinned Copper • Insulation: Foam-PE, ø0.63±0.05 • Shield: AL Wrap; Braid, 16/6/0.12AMA 75% Coverage • Drain: 32AWG 7/0.127B Overall Cable • Jacket: PVC, Black
