Fusion® Extra-Large Pull Out Accessory

Description

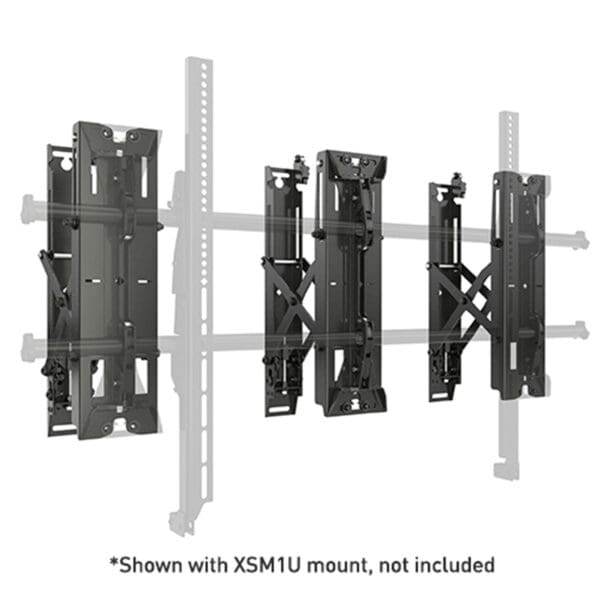

The Fusion ® Extra-Large Pull Out accessory can be used with Fusion ® Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54″ (293 mm) extension from the wall. Compatible display mount models are XSM1U  and XTM1U . Optionally install Chief storage solutions such as the PAC526  in-wall box or on-wall CSPR  component storage panel to secure AV equipment behind the display. Up to 11.54” (293 mm) extension when combined with Fusion mount – great for recessed applications Scissor assembly extends out up to 9.5″ Plumb adjust to keep display in line with the wall Latch to secure mount in home position Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 250 lb / 113 kg) FCAXV1U Weight Capacity Mounting substrate With XTM1U (lbs)   With XSM1U (lbs)  Triple 16″” on center steel stud 200 200 Triple 16″” on center wood stud 250 200 3/4″” Plywood backed steel stud 250 200 Solid Concrete block 250 200 Hollow Concrete block 250 200
